Heat Source Control in Installation: Avoiding Overheating

Heat source control means managing the temperature, dwell time, and distance of an applied heat source so a heat shrink component recovers fully without exceeding its safe processing range. In cable accessory installation, this control determines whether the material reaches its designed recovered state or degrades before the job is finished.

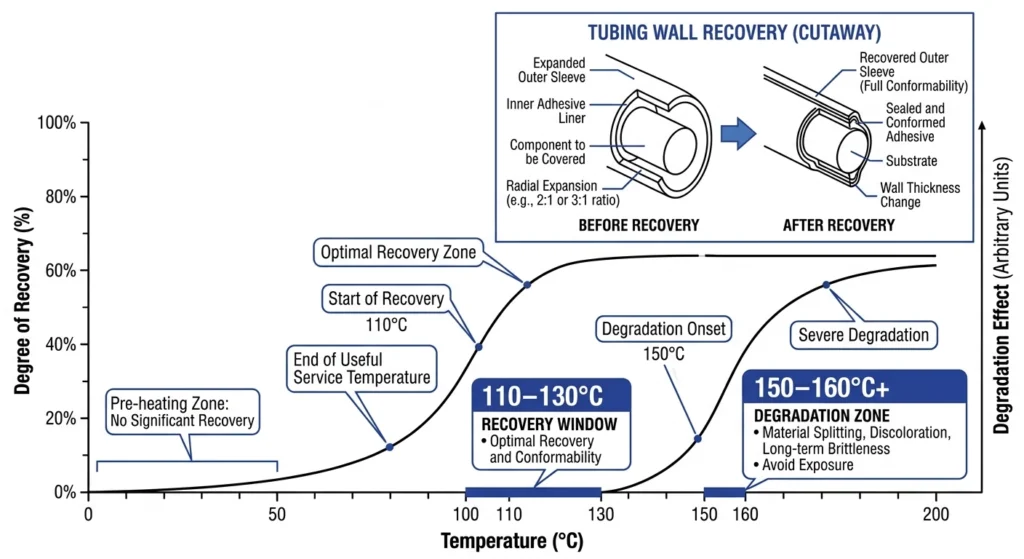

Heat shrink tubing is manufactured from cross-linked polyolefin, expanded during production, and locked into shape until heat is reapplied in the field. Recovery begins near 110°C to 130°C and continues until the tubing fully contracts onto the substrate. Below this window, recovery is incomplete, leaving voids or a loose fit. Above roughly 150°C to 160°C sustained on the surface, the polymer scorches, oxidizes, or loses mechanical integrity — a failure mode that is not visually obvious until blistering or discoloration appears.

Why the Margin Is Narrow

The gap between full recovery and damage is often under 30°C at the surface, narrow compared with a propane torch tip exceeding 1,900°C. Because the heat source is always far hotter than the material can tolerate, effective heat source control depends on installer technique — distance, motion, and dwell time — rather than the tool’s rated output. Technicians who hold a torch or gun statically in one spot, rather than sweeping, are the most common source of localized overheating in field commissioning.

For related staging guidance, see ZeeyiElec’s heat shrink installation quality control checklist.

[전문가 인사이트]

• Recovery-to-degradation gap is often under 30°C — narrower than most installers expect
• Torch tip temperature (1,900°C+) never signals “safe” on its own; technique is the control variable
• Static dwell, not tool choice, is the most common root cause of scorching

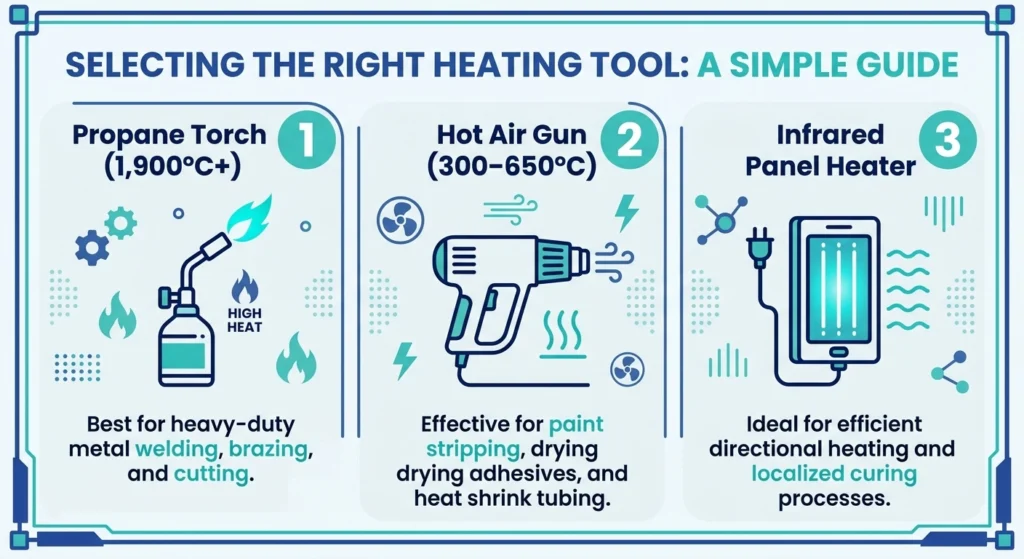

Heat Source Types Used in Heat Shrink Installation

Field crews rely on three heat sources, each with different controllability, and matching the right one to the job is the first defense against overheating.

Propane/Butane Torch

Open-flame torches deliver high heat output quickly, even in wind, with tip temperatures exceeding 1,900°C. The torch provides no inherent regulation — control comes entirely from distance and motion. Torches suit larger components, such as 35 kV class terminations above 60 mm OD, but carry the highest overheating risk, since a momentary pause can scorch the surface within seconds.

Hot Air (Heat) Gun

Heat guns output regulated air, commonly 300°C to 650°C at the nozzle — still well above the recovery threshold but more consistent than open flame. They suit indoor switchgear work and smaller LV components, such as 1 kV tubing under 20 mm diameter, at the cost of longer dwell time in cold or drafty conditions.

Infrared Panel Heater

Infrared heaters apply radiant heat across a broader area, reducing localized hot spots. They see limited field use due to equipment size but are common in pre-fabrication shops producing termination kits before shipment.

Distance, Angle, and Motion Technique for Controlled Heating

Heat source control depends less on the tool than on how it is manipulated. Standoff distance, motion pattern, and dwell time determine whether recovery is even and complete.

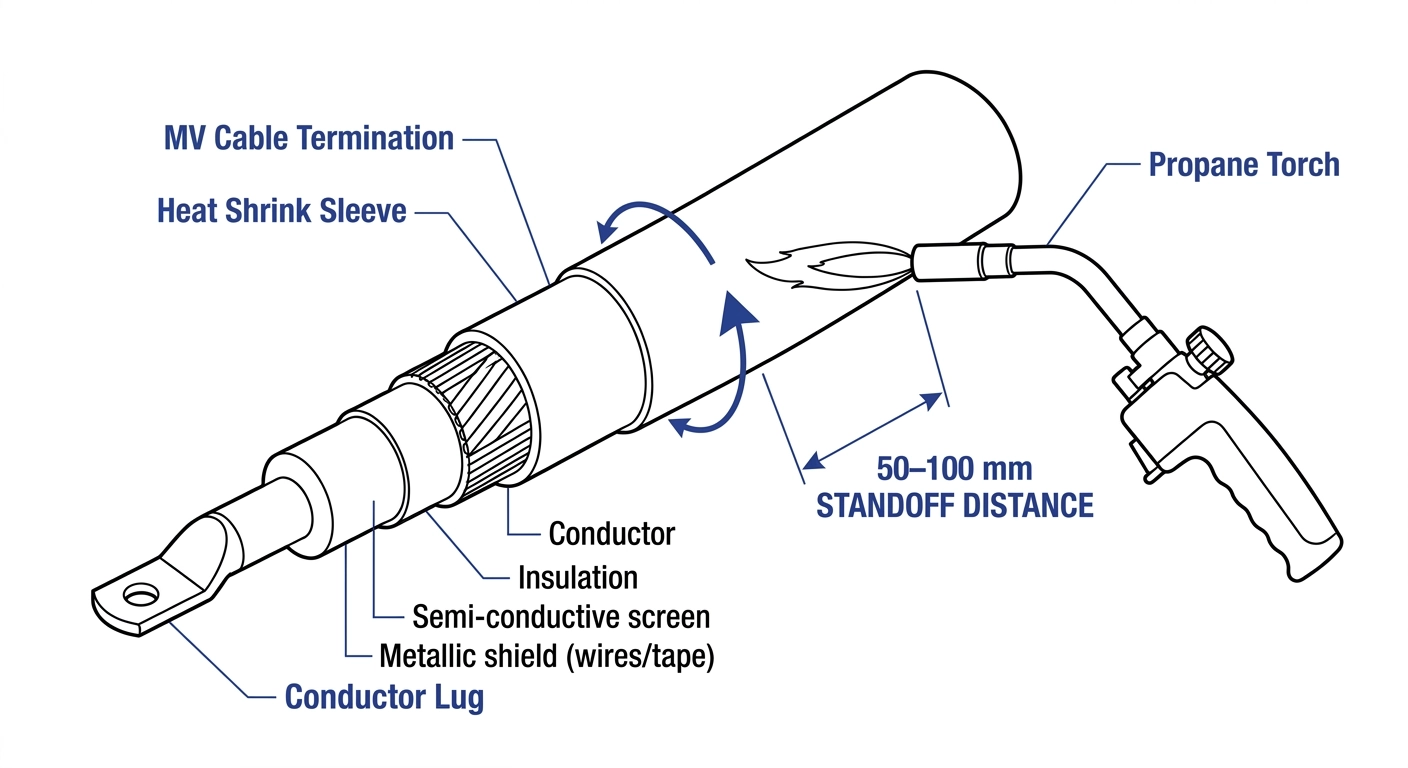

Standoff Distance Control

A torch is typically held 50 mm to 100 mm from the surface, adjusted for flame size and wind. Too close, and heat concentrates faster than the polymer can dissipate it, scorching one side before the rest recovers. Heat guns are usually held closer, 25 mm to 50 mm, since output is already moderated.

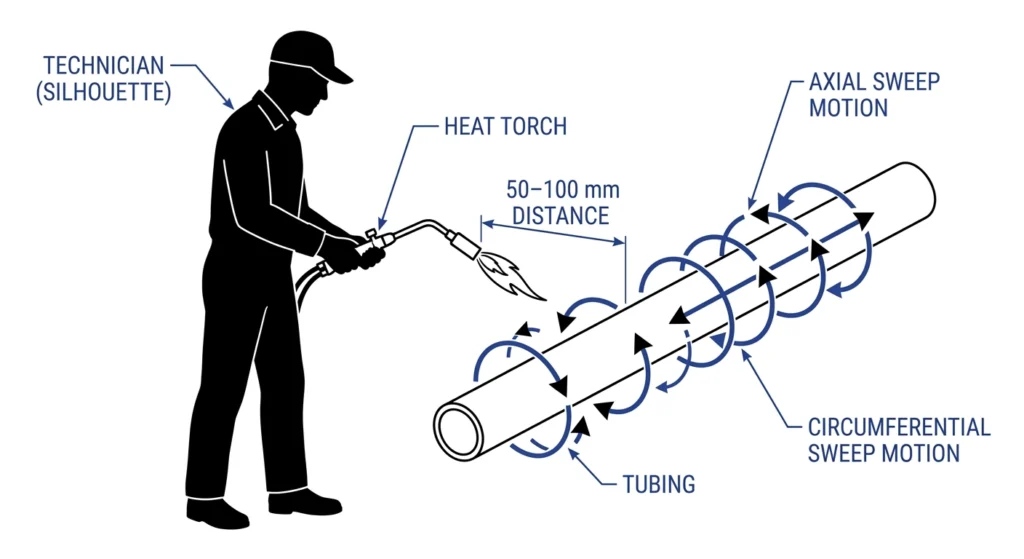

Circumferential Sweep vs. Static Application

Heat should move in a continuous circumferential sweep rather than dwell in one spot. In 15 kV class termination work, crews that pause to “finish off” a stubborn section are the most frequent cause of blistering — the fix is a slower, continuous pass. Starting at the center and working outward in overlapping passes limits trapped air while keeping surface temperature uniform.

Dwell Time Relative to Diameter

Dwell time scales with wall thickness and conductor mass. A thin-wall LV tube under 10 mm may recover in under 30 seconds of sweeping heat, while an MV termination body over 50 mm can need several minutes. Applying MV-level heat source control timing to LV components — or the reverse — commonly causes incomplete recovery or localized overheating at thinner transitions.

Surface temperature rise is approximately proportional to dwell time at a fixed standoff distance, following T_surface ≈ T_주변 + k × t, where k depends on heat source output and distance — so reducing either dwell time or proximity compounds toward preventing overheating.

For step-level sequencing, see ZeeyiElec’s MV cable accessories installation QC checklist.

[전문가 인사이트]

• Standoff distance and dwell time matter more than which tool is used
• LV and MV components need different dwell times; mismatched timing is a common overheating trigger
• Overlapping center-outward sweeps reduce trapped air and hot spots together

Recognizing and Diagnosing Overheating in the Field

Overheated material does not always fail immediately — damage introduced during installation can pass inspection and surface as a failure months later. Checking specific indicators right after heat application, while the section is accessible, catches most problems early.

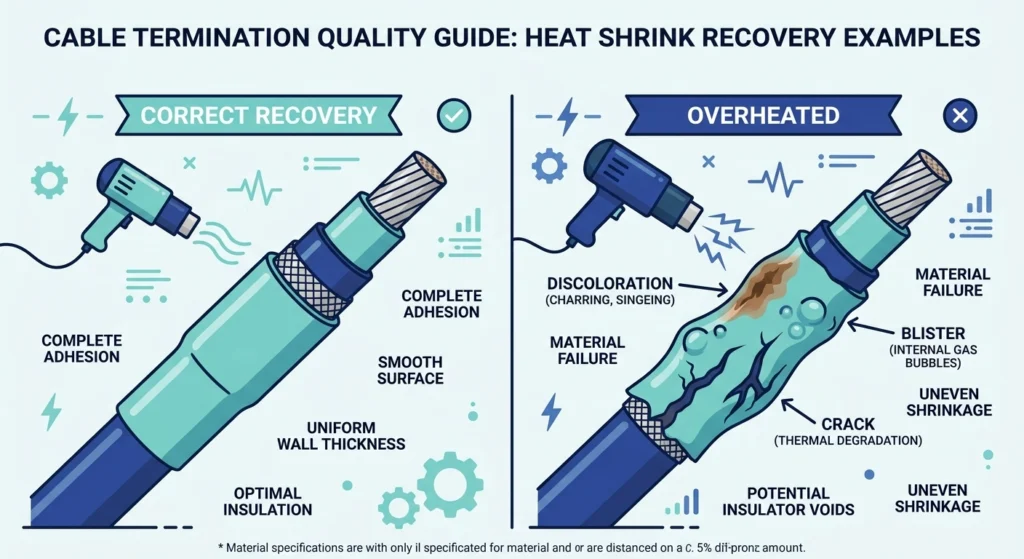

Visual Indicators

Discoloration — yellowing or browning where heat lingered — is the earliest sign. Blistering, small raised bubbles from trapped gas, is a stronger indicator since it usually affects the tube’s structural cross-section. Splitting or fine cracking, most visible at tube ends or over sharp geometry, suggests the material exceeded its elastic recovery limit while hot.

Tactile and Structural Indicators

A properly recovered section feels uniformly firm and slightly tacky, conforming tightly with no loose or overly rigid patches. Brittleness — stiffness or cracking under light finger pressure — indicates heat-driven flexibility loss that is typically not reversible. Uneven wall thickness often results from inconsistent heat application, and the same technique correction (slower, more even sweeping) addresses both.

In field diagnosis of terminations failing within 12 to 18 months, installation-stage overheating is frequently identified once the termination is dissected, appearing as internal discoloration invisible at commissioning.

For a structured root-cause approach, see ZeeyiElec’s 현장 장애 진단 워크플로.

Site and Environmental Factors That Change Heat Application

Ambient conditions directly affect how much heat energy reaches the tubing, and installers using the same technique regardless of environment risk underheating in cold weather or overcompensating into overheating.

Wind and Cold-Weather Compensation

Wind strips heat away before it reaches the material, which often pushes installers to move closer or slow the sweep — both raise overheating risk if uncontrolled. Below roughly 5°C ambient, total dwell time can increase 20% to 40% versus a 20°C shop environment. Using a wind shield or working from the leeward side preserves the standoff-distance safety margin rather than closing the gap.

Multi-Layer and Breakout Considerations

Multi-layer builds, such as a breakout boot over a three-core cable, complicate heat source control because layers reach recovery temperature at different rates. The outer layer can appear recovered while an inner layer remains underheated; repeated passes to fix the inner layer can then overheat the outer one. Working inside-out with brief cooling pauses between passes reduces over-application to already-recovered sections.

Standards, Manufacturer Data, and Where to Verify Heat Parameters

Manufacturer datasheets remain the primary reference for exact temperature and dwell parameters, since recovery windows vary between silicone, EPDM, and polyolefin formulations even within the same voltage class. Where a datasheet is ambiguous, IEC 60684-3 provides test methods for insulating sleeving materials relevant to shrink recovery behavior, though pass/fail thresholds should be confirmed against the kit manufacturer’s own data.

Procurement teams should request the supplier’s recommended heat source type, standoff distance, and dwell time range as part of technical documentation — not just recovered dimensions — particularly when transitioning between 15 kV and 35 kV class terminations, where wall thickness differs enough that one class’s technique can overheat the other.

ZeeyiElec provides technical datasheets and heat application guidance by voltage class and conductor size alongside its heat shrink cable accessory line. Teams evaluating a supplier or preparing an RFQ for cold or heat shrink terminations can request this documentation directly.

Reference: IEC — International Electrotechnical Commission

Post-Installation Verification Checklist

A short check immediately after heat application catches most overheating issues while the section is still open.

Immediate Post-Heat Checks

Once tubing cools to touch — typically 2 to 5 minutes depending on ambient temperature and mass — inspect the full circumference for discoloration, blistering, or cracking, not just the side facing the installer. Run a gloved hand along the length to check for brittleness or uneven wall thickness against a known-good reference. Confirm full conformance to the substrate with no visible gaps.

Documentation for QC Records

Recording heat source type, approximate dwell time, and ambient conditions gives later failure investigations a starting point. Photographing the completed section before closing switchgear or backfilling provides a comparison reference. Formal QC sign-off against a defined checklist is more useful than a general “looks good” note for the 12- to 18-month window when installation-stage overheating most often surfaces.

This checklist complements broader installation QC practices; see ZeeyiElec’s 케이블 액세서리 그리고 변압기 액세서리 product series for related documentation and RFQ support.

자주 묻는 질문

What temperature range is used for heat shrink cable accessory installation?

Most cross-linked polyolefin and elastomeric shrink materials recover fully between roughly 110°C and 130°C at the surface, though the exact figure depends on formulation and should be checked against the kit datasheet.

Can you overheat heat shrink tubing with a heat gun instead of a torch?

Yes — a heat gun output of 300°C to 650°C is still well above the recovery threshold, so holding it too close or too long can scorch the surface just as an open flame can, only more slowly.

What happens if a heat shrink termination is overheated during installation?

Overheating can cause discoloration, blistering, brittleness, or cracking, and even without visible damage at commissioning it can contribute to early service failures within 12 to 18 months.

How do you know if heat shrink tubing has fully recovered without overheating it?

A properly recovered section feels uniformly firm and tacky, conforms tightly with no visible gaps, and shows no discoloration, blistering, or brittleness on inspection right after cooling.

Does cold weather require a different heat application technique?

Yes — below roughly 5°C ambient, dwell time often needs to increase 20% to 40% compared to a 20°C environment, and using a wind shield rather than closing standoff distance avoids overcompensating into overheating.

Is infrared heating safer than an open torch for avoiding overheating?

Infrared heating distributes heat more evenly and reduces localized hot spots, but it sees limited field use due to equipment size, so a torch handled with correct technique remains standard for most outdoor MV work.

How close should the heat source be held to the tubing during shrinking?

A propane torch is typically held about 50 mm to 100 mm from the surface, while a heat gun is usually held closer, around 25 mm to 50 mm, adjusted for wind, component size, and tool output.
