Transformer Accessories Series

Loadbreak Switches for Pad-Mounted Distribution Transformers

Engineered for reliable switching in oil-immersed transformer systems. ZeeyiElec loadbreak switch portfolio covers Two-Position and Four-Position Sectionalizing designs with hook-stick operation, stored-energy quick action, and model options for 1-phase and 3-phase applications.

Two-Position & Four-Position Options • Hook-Stick Operable Mechanism • Export Engineering Support

Request Quote View Specifications

Voltage Class 15/25 kV & 38/40.5 kV

Current Rating 630 A

Application Scope 1-Phase / 3-Phase, Oil-Filled Transformers

Product Definition

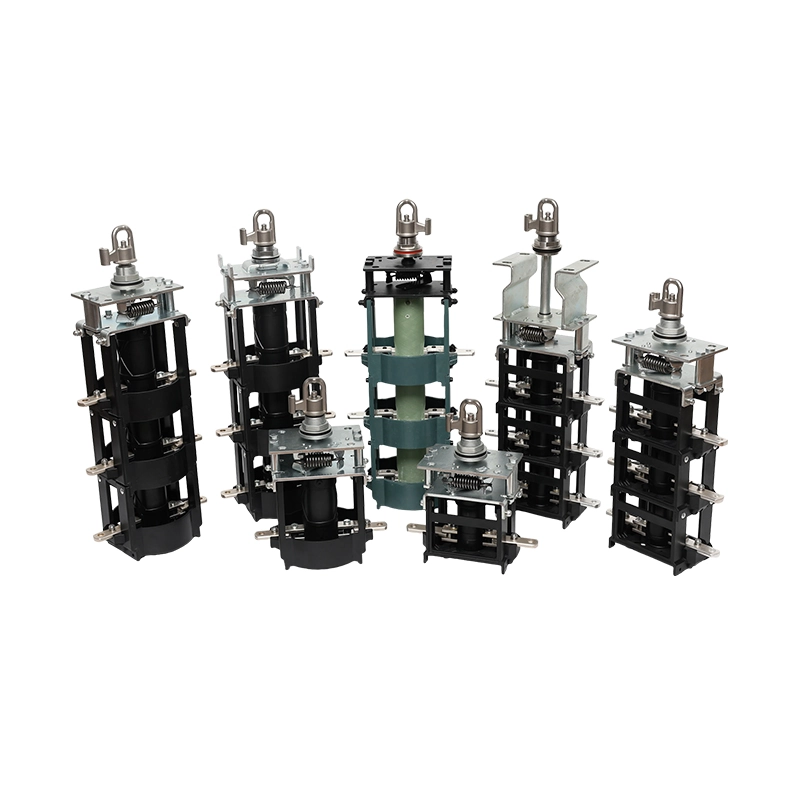

What Is a Loadbreak Switch in a Transformer System?

A loadbreak switch is a transformer-mounted switching device used to make or break rated current in oil-immersed distribution equipment. In pad-mounted applications, the switch provides a reliable interface for feeder isolation, circuit transfer, and sectionalizing logic. ZeeyiElec covers both two-position loadbreak switch and four-position sectionalizing loadbreak switch configurations for utility and industrial transformer systems.

1
Quick Loadmake/Loadbreak Action — stored-energy mechanism enables consistent switching independent of operator speed.
2
Series Logic Coverage — choose two-position for standard switching, or four-position for sectionalizing and transfer paths.
3
Transformer Compatibility — designed for pad-mounted, oil-filled transformer structures with export-oriented model options.

Continue to SEC3 for model families and SEC4 for ratings/specifications, dimensions, and ordering references.

Application Layer Pad-Mounted Oil-Immersed Transformer

This Product Loadbreak Switch

Series A Two-Position
Loadbreak Switch

Volt40.5 kV

ConfHigh Volt

Amps630 A

TypeStandard

Robust 3-phase high-voltage-class model for heavy duty.

Request Spec

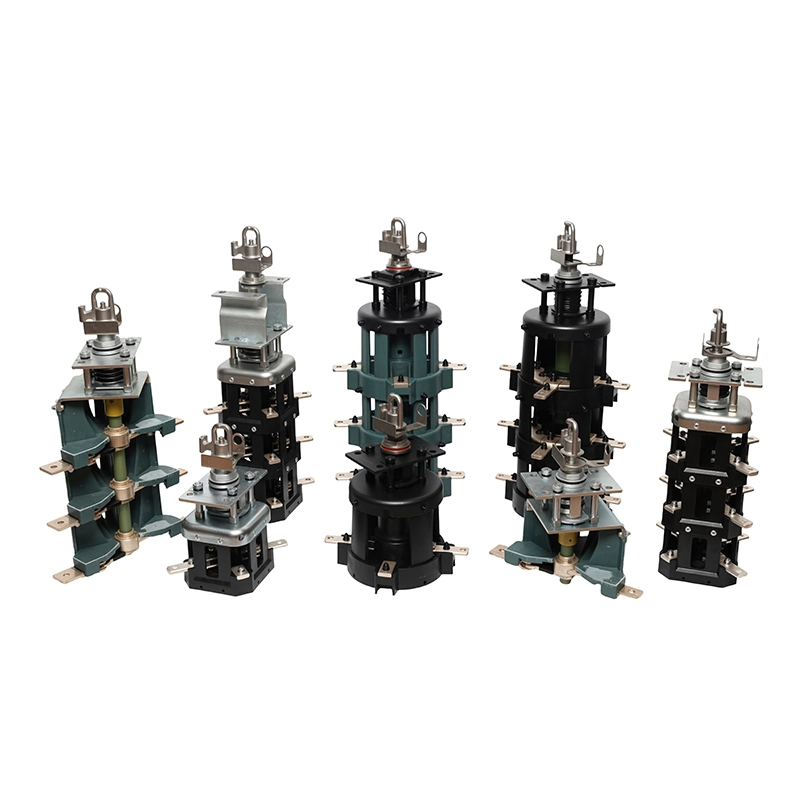

Four-Position Sectionalizing Switches Series II

Voltage: 15-40.5 kV Switching: BBM / MBB Mech Life: 3,000 Ops Logic: Sectionalizing

Overview

Series II Overview

Volt15-40.5kV

LogicMulti

Amps630 A

TypeBBM/MBB

Sectionalizing logic with multi-position configuration flexibility.

Request Spec

1-Phase

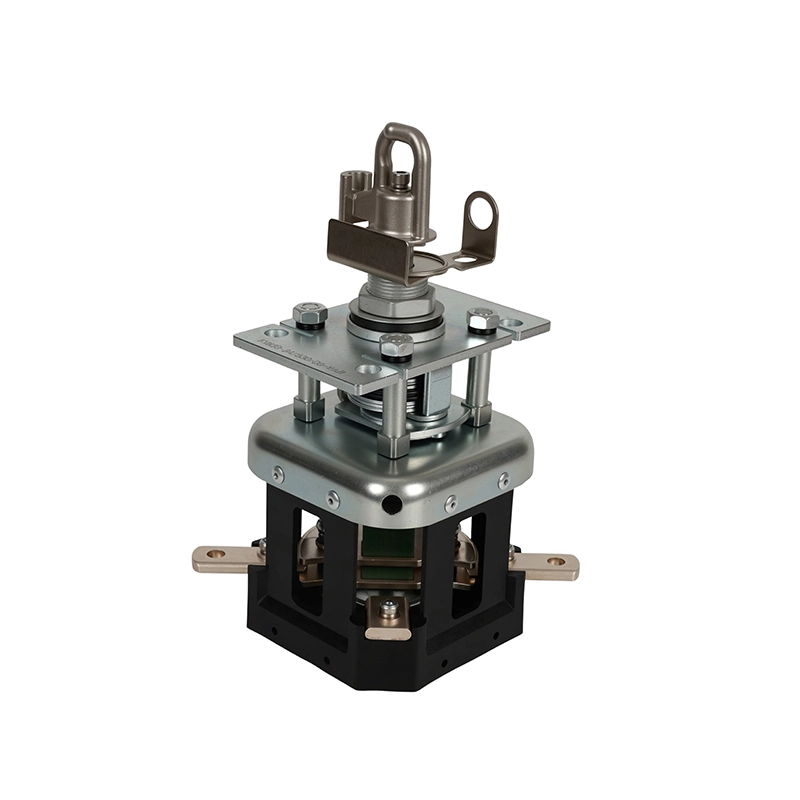

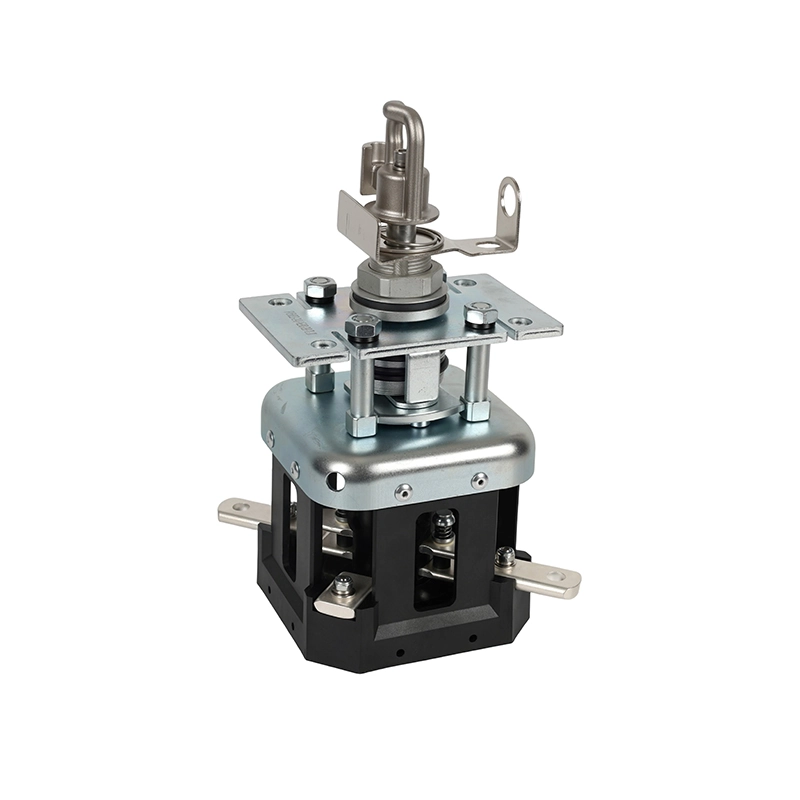

FYN33-(15)25-J1 (BBM)

Volt15/25 kV

LogicBBM

Amps630 A

PhaseSingle

Single-phase BBM configuration for sectionalizing operations.

Request Spec

3-Phase

FYN33-(15)25 (BBM)

Volt15/25 kV

LogicBBM

Amps630 A

PhaseThree

Three-phase BBM model for standard sectionalizing logic.

Request Spec

1-Phase

FYN33-(15)25-Y-J1 (MBB)

Volt15/25 kV

LogicMBB

Amps630 A

PhaseSingle

Single-phase MBB variant for continuous transfer switching.

Request Spec

3-Phase

FYN33-(15)25-Y (MBB)

Volt15/25 kV

LogicMBB

Amps630 A

PhaseThree

Three-phase MBB model for multi-source sectionalizing.

Request Spec

1-Phase

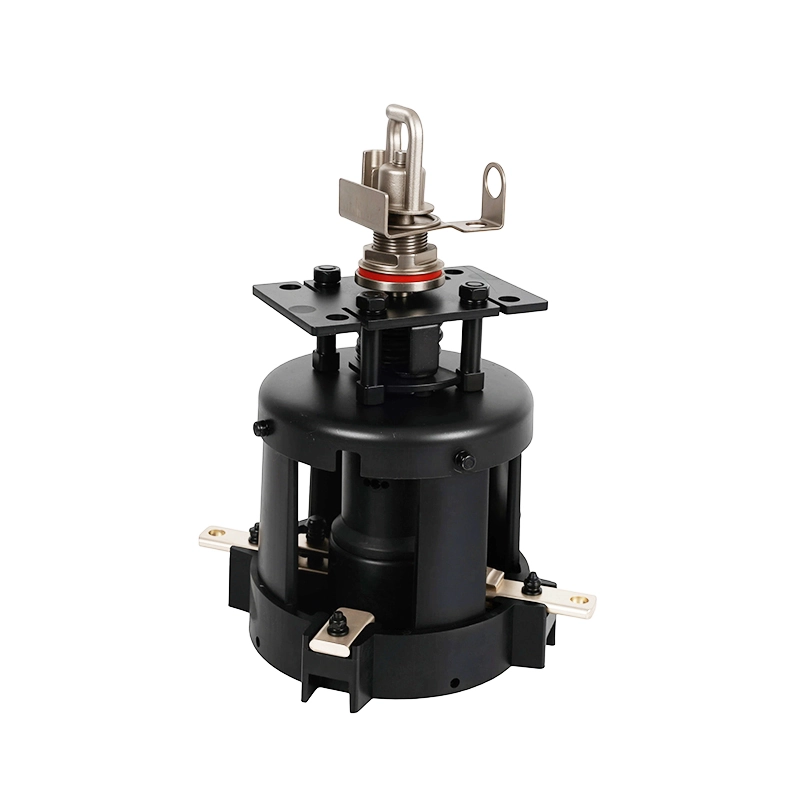

FYN33-(38)40.5-J1 (BBM)

Volt40.5 kV

LogicBBM

Amps630 A

PhaseSingle

High-voltage single-phase BBM option for advanced applications.

Request Spec

3-Phase

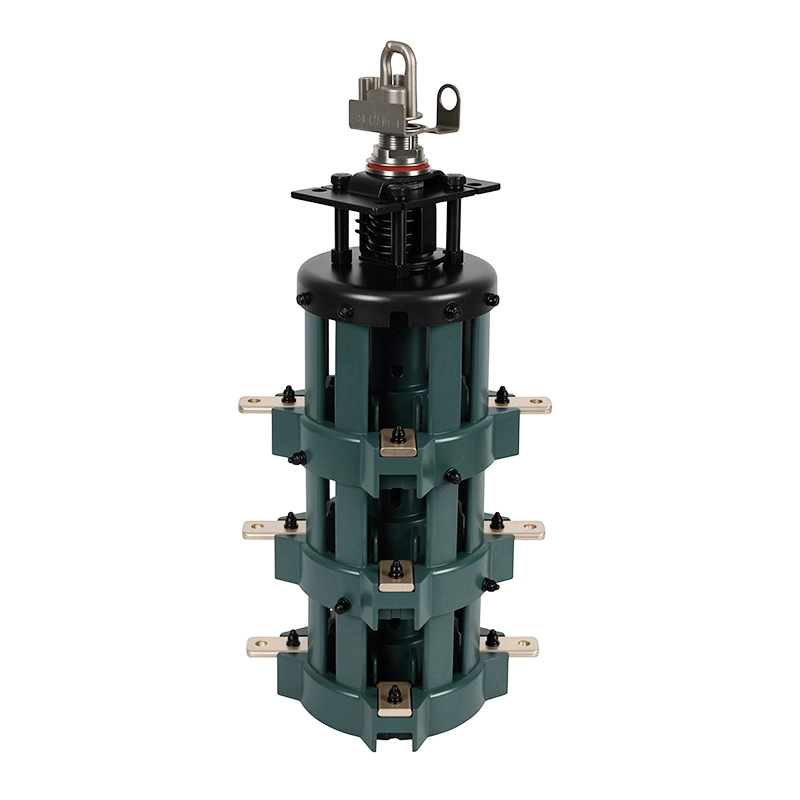

FYN33-(38)40.5 (BBM)

Volt40.5 kV

LogicBBM

Amps630 A

PhaseThree

Three-phase BBM model for 40.5kV class sectionalizing.

Request Spec

3-Phase

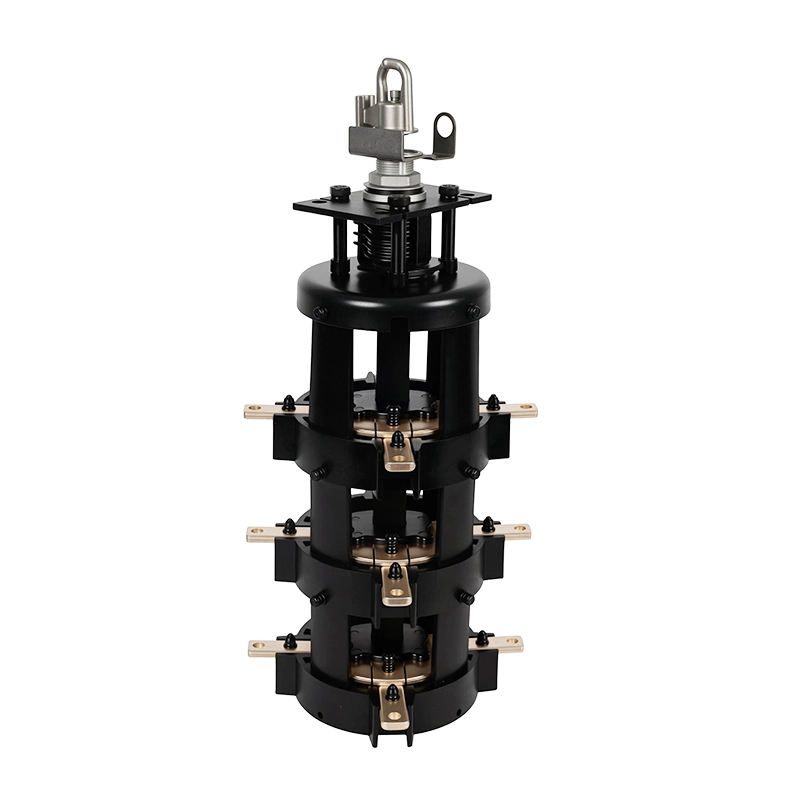

FYN33-(38)40.5-Y (MBB)

Volt40.5 kV

LogicMBB

Amps630 A

PhaseThree

High-voltage MBB configuration for complex feeder logic.

Request Spec

Engineering Specifications

Loadbreak Switch Ratings (Two-Position & Four-Position)

The technical data below provides a comprehensive overview of electrical ratings and model coverage for preliminary selection. For detailed dimensional drawings and internal structure mapping, please refer to the subsequent drawings module.

Electrical Ratings

Parameter	15/25 kV Class	38/40.5 kV Class
Rated Voltage	15/25 kV	38/40.5 kV
Rated Frequency	60 Hz	60 Hz
Rated Current	630 A	630 A
4s Thermal Withstand Current	20 kA	25 kA
Dynamic Withstand Current	50 kA	63 kA
Impulse Withstand Voltage (BIL)	125/145 kV	200/215 kV
1-Min Power Frequency Withstand	55/60 kV	95/110 kV
Mechanical Life	2,000 operations	2,000 operations
Tank Thickness Reference	6–8 mm	6–8 mm

Model Coverage Snapshot

Model	Series	Voltage Class	Phase	Switching Type

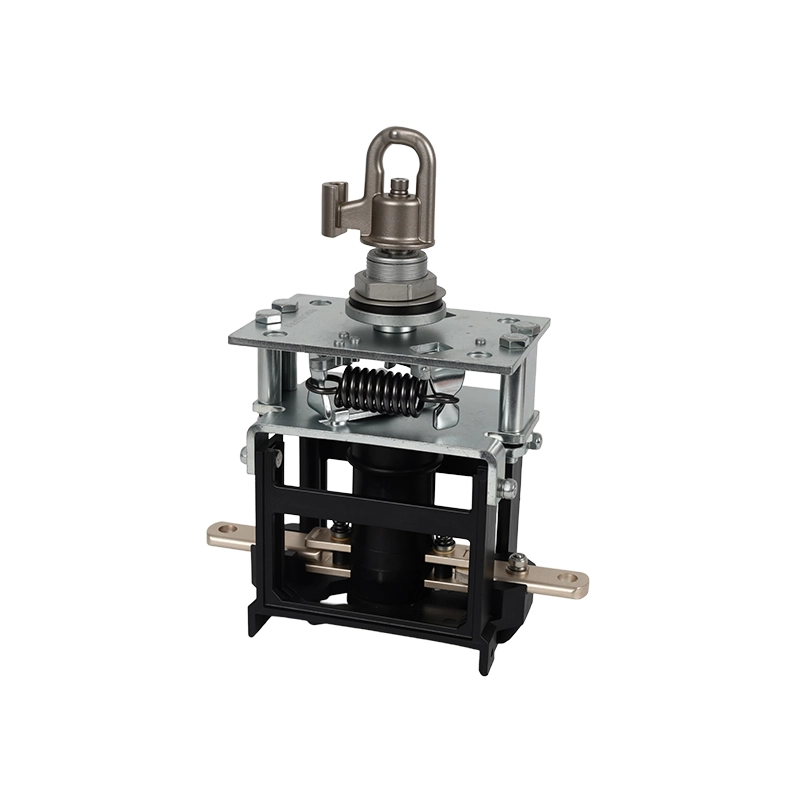

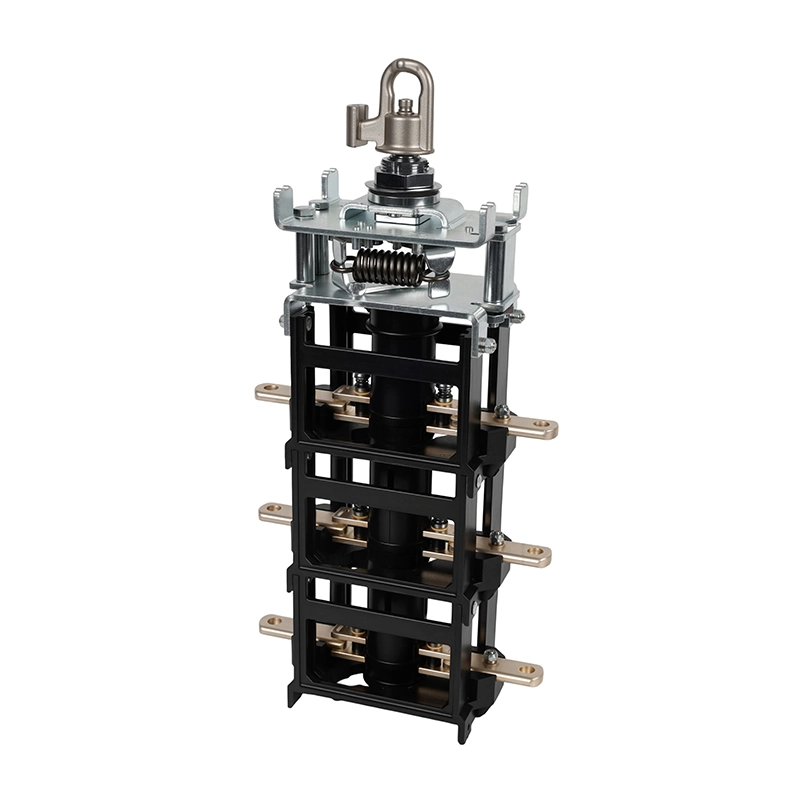

FYB-(15)25/630-20-J1	Two-Position	15/25 kV	1-Phase	Standard

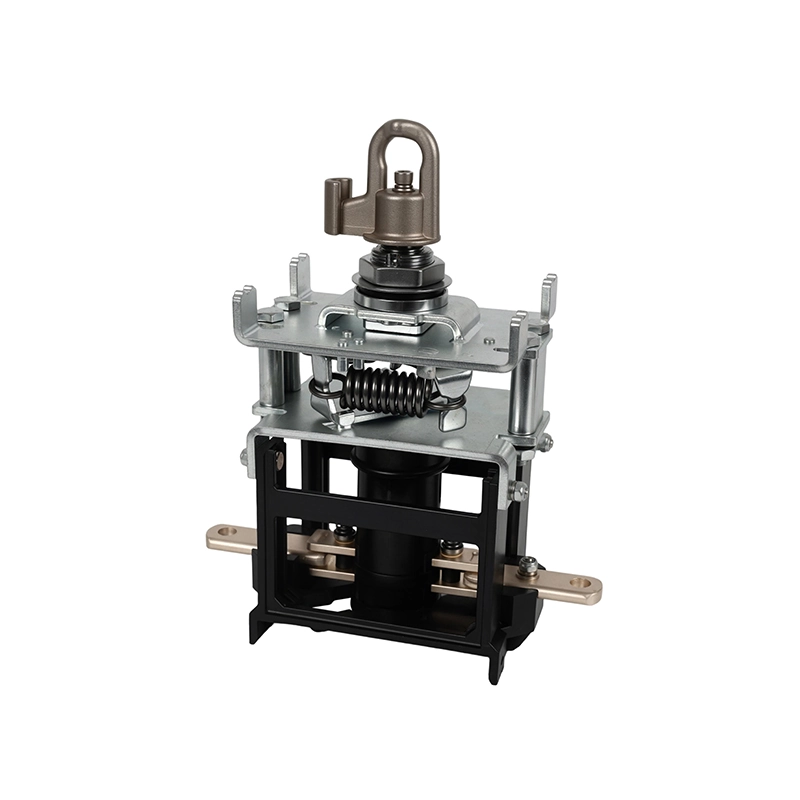

FYB-(15)25/630-20-J1-L	Two-Position	15/25 kV	1-Phase	Standard

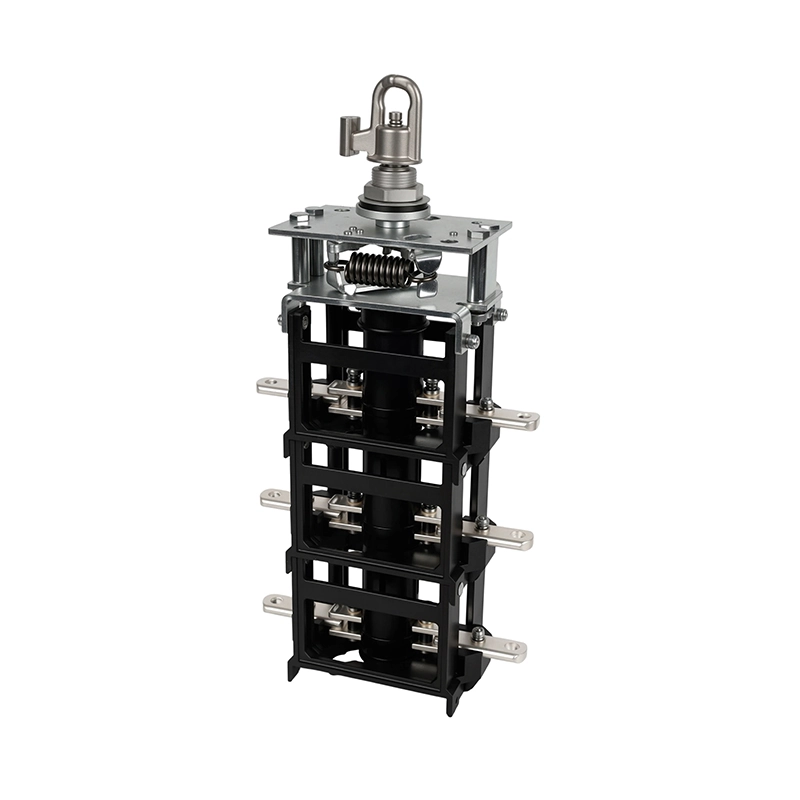

FYB-(15)25/630-20	Two-Position	15/25 kV	3-Phase	Standard
FYB-(15)25/630-20-L	Two-Position	15/25 kV	3-Phase	Standard

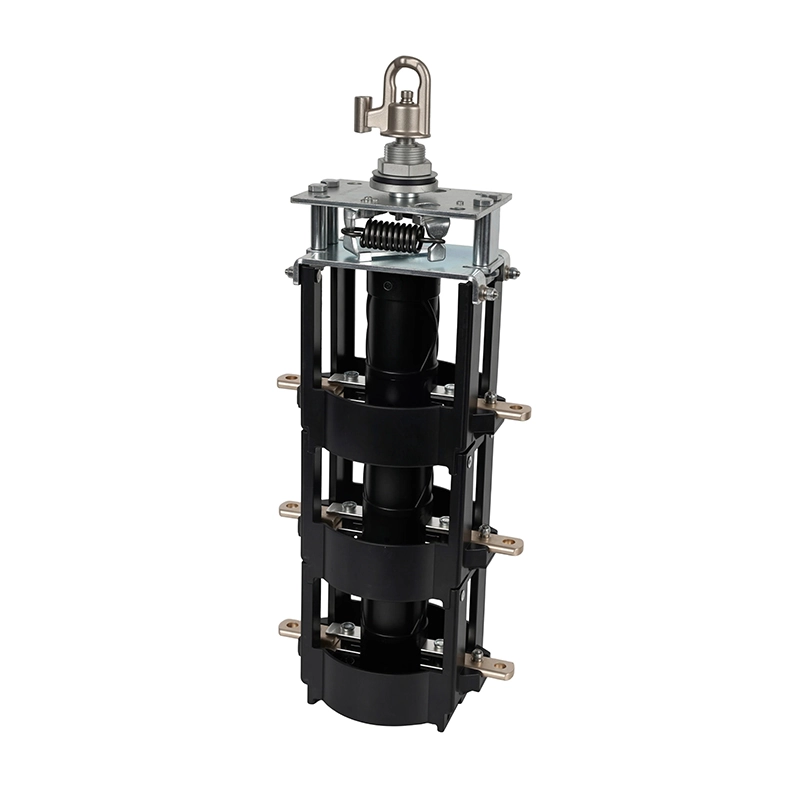

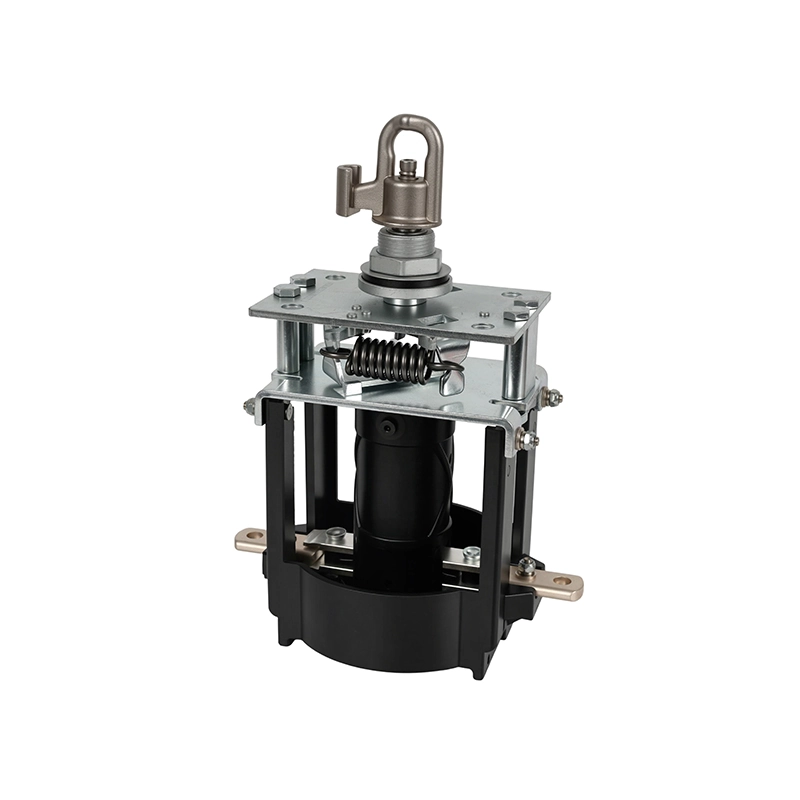

BYFI-(38)40.5/630-25-J1	Two-Position	38/40.5 kV	1-Phase	Standard
BYFI-(38)40.5/630-25	Two-Position	38/40.5 kV	3-Phase	Standard

Electrical Ratings

Parameter	15/25 kV Class	38/40.5 kV Class
Rated Voltage	15/25 kV	38/40.5 kV
Rated Current	630 A	630 A
Switching Positions	4-Position	4-Position
Switching Logic	BBM / MBB	BBM / MBB
Mechanical Life	3,000 operations	3,000 operations
Application Type	Sectionalizing / Transfer	Sectionalizing / Transfer

* See detailed datasheet for full withstand matrix and short-time current ratings.

Model Coverage Snapshot

Model	Series	Voltage Class	Phase	Switching Type
FYN33-(15)25/630-25-J1	Four-Position	15/25 kV	1-Phase	BBM
FYN33-(15)25/630-25	Four-Position	15/25 kV	3-Phase	BBM
FYN33-(15)25/630-25-Y-J1	Four-Position	15/25 kV	1-Phase	MBB
FYN33-(15)25/630-25-Y	Four-Position	15/25 kV	3-Phase	MBB
FYN33-(38)40.5/630-25-J1	Four-Position	38/40.5 kV	1-Phase	BBM
FYN33-(38)40.5/630-25	Four-Position	38/40.5 kV	3-Phase	BBM
FYN33-(38)40.5/630-25-Y	Four-Position	38/40.5 kV	3-Phase	MBB

Engineering Layout

Dimensions, Structure & Wiring Logic

Installation interface specifications and internal switching topology. Confirm physical clearance and circuit logic prior to final layout.

Two-Position Logic

OFF

Open

Closed

Mechanism: Spring-charged over-toggle.
Speed: Operation independent of operator speed (<1 cycle).
Structure: Single deck (1-Phase) or stacked (3-Phase).

Four-Position Logic T-Blade

Line A

Line B

LOAD

BBM

Source A

Break

Source B

MBB

Source A

A+B

Source B

Physical Installation Interface

Mounting Pattern

4x M10 Holes
Spacing: 110 ±0.5 mm (Square)
Center Hole: Φ20mm

Tank Requirements

Wall Thickness: 6mm - 8mm
Installation: Welded Boss or Gasketed Flange

Operation

Hook-stick operable (Eyelet)
Torque: Minimal input required
Rotation: 360° (4-Pos)

Dimension Reference Guide

Model Series	Type	Phase	PDF Ref.	Approx. Height (mm)
FYB-(15)25 (J1)	2-Pos	1-Phase	Fig. 4	280
FYB-(15)25 (J1-L)	2-Pos	1-Phase	Fig. 5	279
FYB-(15)25	2-Pos	3-Phase	Fig. 7	558
FYB-(15)25 (L)	2-Pos	3-Phase	Fig. 8	472
BYFI-(38)40.5 (J1)	2-Pos	1-Phase	Fig. 6	316
BYFI-(38)40.5	2-Pos	3-Phase	Fig. 9	590
FYN33-(15)25	4-Pos	1-Phase	Fig. 5	585
FYN33-(15)25	4-Pos	3-Phase	Fig. 8	485
FYN33-(38)40.5	4-Pos	1-Phase	Fig. 7	334
FYN33-(38)40.5	4-Pos	3-Phase	Fig. 9	590

Network Condition 35kV+ class loop distribution system.

Why Sectionalizing capability required at higher insulation levels.

Suggested Setup 38/40.5kV, 3-Phase, BBM

Selection Decision Flow

A simplified 3-step logic to identify your required series.

Step 1

Network Objective

Is this for simple isolation or loop/transfer?

A. Isolation (On/Off) → Go to 2-Pos

B. Routing (A/B/Both) → Go to 4-Pos

Step 2

Electrical Level

Confirm voltage class and phase.

15/25kV Class (Standard)

38/40.5kV Class (High Volt)

Step 3

Switching Logic

Define transition requirement.

Standard (Quick Make/Break)

BBM (Break-Before-Make)

MBB (Make-Before-Break)

Result A: Two-Position Series Best for radial feeds & simple isolation.

Result B: Four-Position Series Best for loop feeds & source transfer.

RFQ Readiness Checklist

Series type (Two vs Four-position)

Voltage class (15/25kV or 38kV)

Phase configuration (1 or 3-Phase)

Switching Logic (BBM or MBB)

Transformer integration method

Quantity & Project Timeline

Quality & Delivery

Quality Control, Technical Documentation, and Export Delivery

ZeeyiElec ensures every loadbreak switch is backed by a traceable quality control process, comprehensive technical documentation, and coordinated export support to minimize project risk.

Quality Control Process

Node 01

Incoming Material Verification

Rigorous check of raw copper, insulation materials, and spring steel grades against specifications.

Output: Material Traceability Log

Node 02

Component & Assembly Inspection

Dimensional verification of machined parts and preliminary assembly alignment checks.

Output: Dimensional Check Sheet

Node 03

Functional Switching Check

Manual operation test for torque consistency and mechanical latching reliability.

Output: Mechanical Operation Pass

Node 04

Routine Electrical Verification

Power frequency withstand and contact resistance testing per batch requirements.

Output: Routine Test Report

Node 05

Final Visual & Marking Inspection

Verification of nameplate data, phase markings, and cosmetic surface finish.

Output: Final QC Stamp

Node 06

Packing Integrity Check

Physical inspection of export-grade crate reinforcement and moisture protection.

Output: Packing Photo Proof

Documentation Availability Matrix

Document Type	Typical Use	Availability	Note
Product Datasheet	Initial specification & selection	Standard	Digital PDF format
Model Confirmation Sheet	Order accuracy verification	Standard	Signed before production
Routine Test Record	Quality assurance record	Project Scope	Batch-based testing data
Installation Guidance	Site assembly & maintenance	Standard	English manual included
Packing List	Logistics & customs clearance	Standard	Detailed crate contents
Commercial Invoice	Payment & import duty	Standard	Official export format
Certificate of Origin	Tariff preference (e.g., Form E/A)	On Request	Issued by relevant authority

Export Delivery Support

Technical & Commercial Alignment

Seamless coordination between engineering drawings and commercial terms to ensure the ordered configuration is what gets built.

Global Logistics & Customs Support

End-to-end vessel booking assistance and customs documentation handling (FOB/CIF) to ensure smooth port clearance.

Lead-Time Communication

Transparent production scheduling and proactive updates on order status, from manufacturing to vessel booking.
