Byyoyo shiA well-structured Request for Quotation for transformer accessories directly impacts procurement success, equipment compatibility, and long-term system reliability. Incomplete specifications account for approximately 40% of accessory mismatches and costly change orders during transformer installation projects—delays that add 2–4 weeks to procurement cycles before manufacturing can even begin.

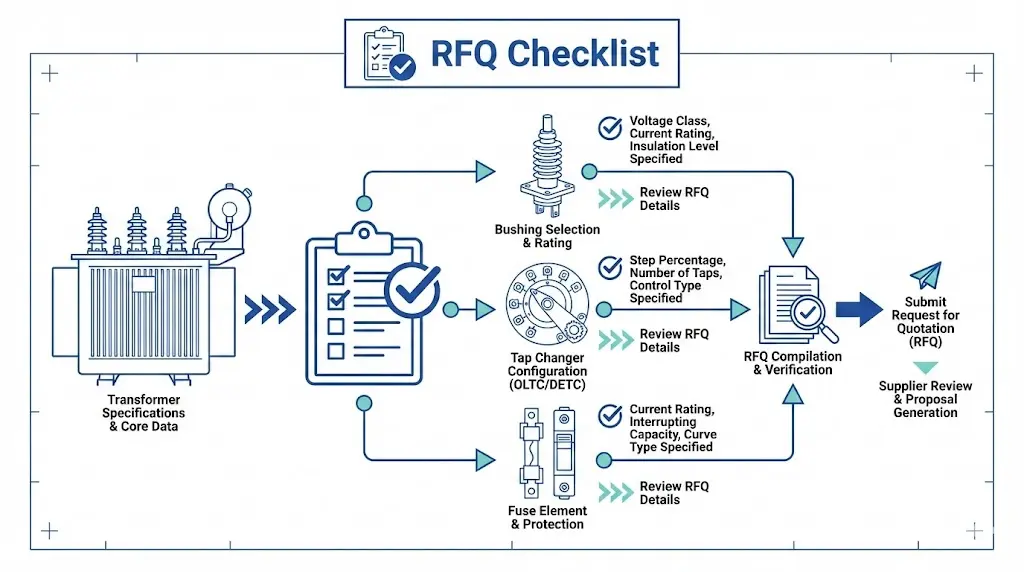

This checklist covers the critical accessory categories: bushings, tap changers, fuses, bushing well inserts, and protective devices. Each component requires specific technical parameters matched to the transformer’s voltage class, power rating, and operating environment. For distribution transformers rated 10–35 kV, accessory compatibility verification typically involves cross-referencing 15–25 distinct parameters before purchase order approval.
The methodology presented here ensures systematic coverage of electrical, mechanical, and environmental requirements—enabling accurate supplier quotations and correct manufacturing the first time.
Transformer accessory procurement rarely receives the same attention as the main transformer unit—until missing specifications halt production or cause site rework. The pattern repeats across projects: a procurement engineer submits an RFQ for bushings, tap changers, and fuses, but omits critical details. Voltage class appears without BIL rating. Mounting configuration stays undefined. The governing standard switches between IEEE and IEC references within the same document.
Each missing parameter generates a technical query. Each query requires internal coordination at the buyer’s organization. Each response adds 5–10 business days to the procurement timeline.
Three root causes drive most RFQ delays:
Specification gaps: Electrical ratings receive attention, but mechanical interface details—mounting angles, bolt patterns, below-cover dimensions—get overlooked. These gaps surface only when accessories arrive at the transformer manufacturer’s facility.
Environmental assumptions: Standard designs assume sea-level installation in temperate climates. Projects at high altitude or in heavily polluted coastal zones require adjusted creepage distances that must appear in the original RFQ.
Standards ambiguity: IEEE C57 series and IEC 60076 series define similar but not identical requirements. An RFQ referencing both without clarification forces suppliers to guess—or request clarification.
Field observations from substation commissioning projects reveal that accessories specified without environmental considerations frequently require replacement within the first operational year. Complete specifications enable accurate quoting, correct manufacturing, and on-time delivery.

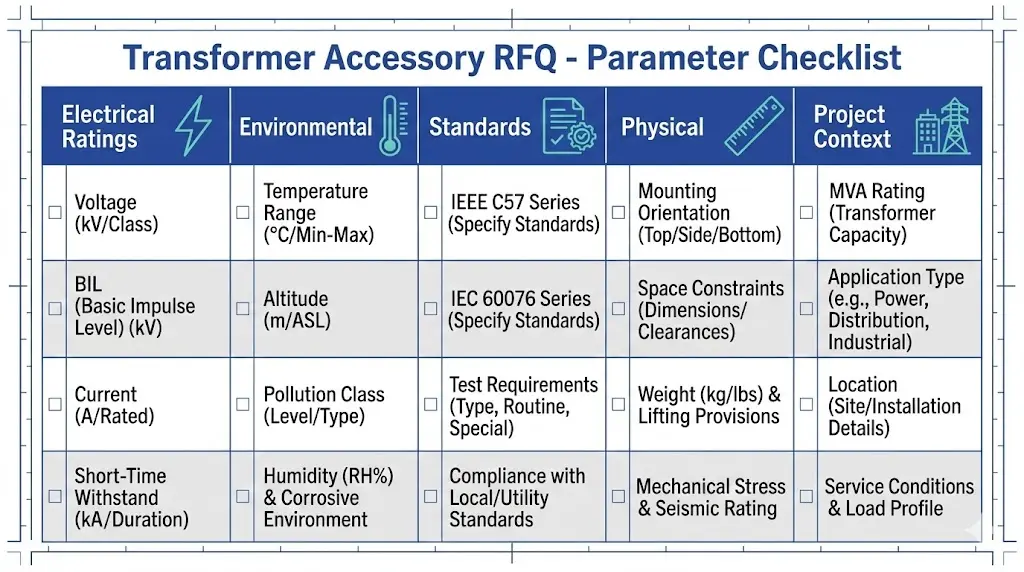

Regardless of accessory type, certain baseline parameters apply universally. Missing any of these triggers clarification requests that extend procurement timelines.
Electrical Ratings
Environmental Conditions
Standards Framework
Physical Constraints
Project Context
Critical RFQ parameters include: rated voltage (Um) in kV, rated current in amperes, thermal current rating at 40°C ambient, partial discharge level ≤10 pC at 1.1 × Um/√3, and creepage distance ≥25 mm/kV for medium pollution environments per IEC 60815-1.
The IEEE Standards Association maintains the C57 series covering transformer and accessory requirements—a valuable reference when determining which test protocols to specify.
Two parameters cause more RFQ confusion than any others: Basic Impulse Insulation Level (BIL) and creepage distance. Understanding the physics behind these values enables correct specification.
BIL: Impulse Withstand vs. System Voltage
BIL represents the peak voltage a component must withstand during lightning impulse events—not the continuous operating voltage. The relationship follows standardized coordination:
| System Voltage Class | Typical BIL Rating |
|---|---|
| 15 kV | 95 kV or 110 kV |
| 25 kV | 125 kV or 150 kV |
| 35 kV | 150 kV or 200 kV |
Higher BIL ratings apply to equipment with greater lightning exposure or more conservative utility specifications. Always verify the transformer’s BIL before specifying matching accessories—mismatched ratings create weak points in the insulation coordination chain.
Creepage Distance: Pollution and Altitude Effects
Creepage distance—the shortest path along an insulating surface between conductive parts—prevents surface flashover under contaminated or wet conditions. IEC 60815-1 defines specific creepage requirements based on pollution severity:
Altitude compounds the challenge. Air density decreases above 1000 meters, reducing dielectric strength. Standard practice applies correction factors that effectively increase required creepage by approximately 1% per 100 meters above 1000m elevation.
Coastal installations, industrial zones near cement plants or chemical facilities, and desert environments with salt-laden dust all demand heavy or very heavy pollution ratings—regardless of what “standard” accessories might suggest.
[Expert Insight: Field Specification Lessons]
- Specify BIL explicitly—never assume suppliers will match transformer nameplate ratings automatically
- For altitudes above 1500m, request manufacturer confirmation of derating calculations
- Coastal sites within 10 km of saltwater typically require very heavy pollution creepage regardless of local appearance
- Document pollution class justification in RFQ notes to prevent value-engineering substitutions

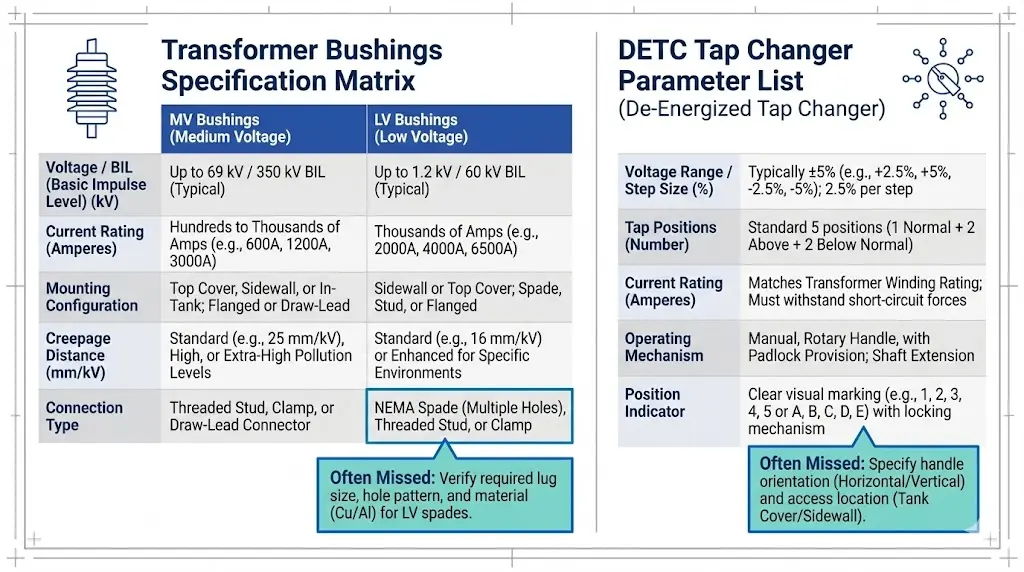

Bushings and tap changers represent the highest-value accessories in most transformer procurement packages. Incomplete specifications here generate the longest clarification cycles.
| Parameter | Required Data |
|---|---|
| Voltage class | System voltage and Um rating |
| BIL | Lightning impulse withstand (kV) |
| Current rating | Continuous current at 40°C ambient (A) |
| Mounting angle | 0°, 15°, 20°, or horizontal |
| Creepage distance | Minimum mm/kV based on pollution class |
| Bushing length | Above-cover and below-cover dimensions |
| Connection type | Spade terminal, threaded stud, or draw lead |
| Material | Porcelain, silicone rubber, or epoxy |
For applications requiring specific bushing configurations, medium voltage transformer bushings must match both electrical ratings and mechanical interface dimensions.
LV bushings often receive less specification attention despite carrying the highest currents. Critical parameters include:
Off-circuit tap changer selection requires matching voltage regulation range to expected load variations:
| Parameter | Specification Details |
|---|---|
| Type | Off-circuit / De-energized tap changer |
| Voltage range | Nominal voltage with tap range (±2×2.5% typical) |
| Number of positions | Total tap positions (commonly 5) |
| Current rating | Through-current capacity (A) |
| BIL | Impulse withstand matching transformer rating |
| Operating mechanism | Rotary handle, external shaft requirements |
| Position indicator | Local mechanical dial, remote electrical contacts |
| Mounting | Flange dimensions and bolt pattern |
Field note: Verify operating handle accessibility in confined installations. Position indicators should remain visible from ground level for routine verification.
Protective devices require precise coordination with both upstream and downstream equipment. Underspecified fuses create protection gaps; overspecified units may not coordinate properly with system protection schemes.

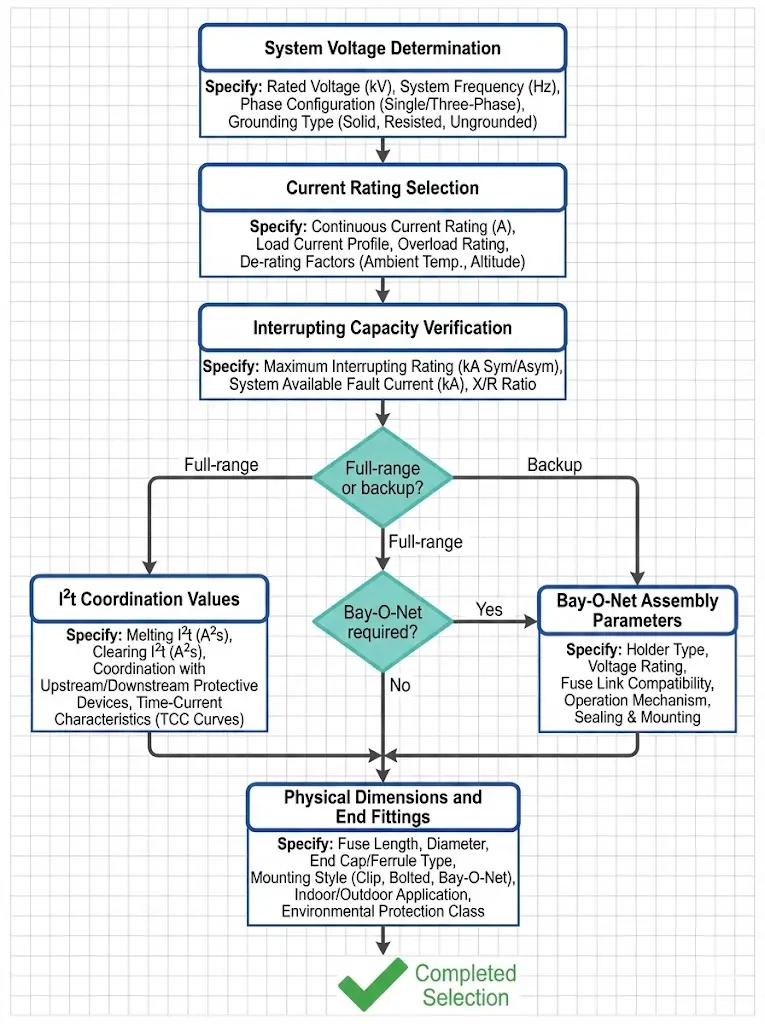

Current limiting fuse specifications must address interrupting capacity relative to available fault current:
| Parameter | Required Data |
|---|---|
| Maximum voltage rating | System voltage (kV) |
| Continuous current | Rated current (A) |
| Interrupting capacity | Symmetrical kA at rated voltage |
| I²t characteristics | Let-through energy for coordination |
| Physical dimensions | Length, diameter, end fitting type |
| Fuse type | Full-range or partial-range (backup) |
Current limiting action depends on rapid arc voltage rise within the fuse element. Specify full-range fuses for standalone protection or partial-range units when coordinating with upstream circuit breakers.
[Expert Insight: Protective Device Coordination]
- Always request I²t curves from fuse manufacturers—catalog values alone are insufficient for coordination studies
- Specify interrupting capacity at least 20% above calculated maximum fault current
- For transformers with frequent inrush events (solar/wind applications), consider inrush-tolerant fuse links
- Include spare fuse links in initial procurement—emergency replacements from different manufacturers may not coordinate identically
Technical specifications alone don’t ensure successful procurement. Commercial and documentation requirements directly impact project timelines and long-term support capability.
| Document | Purpose |
|---|---|
| Type test reports | Verify design compliance to referenced standards |
| Routine test certificates | Confirm individual unit quality |
| Material certificates | Trace material origin and composition |
| Dimensional drawings | Verify fit with transformer design |
| Installation manuals | Support field installation crews |
| Maintenance guides | Enable proper long-term care |
Realistic lead time expectations prevent schedule conflicts:
Specify packaging requirements for the intended transport mode. Sea freight demands more robust moisture protection than air shipment. Include inspection hold points if witness testing is required before shipment release.

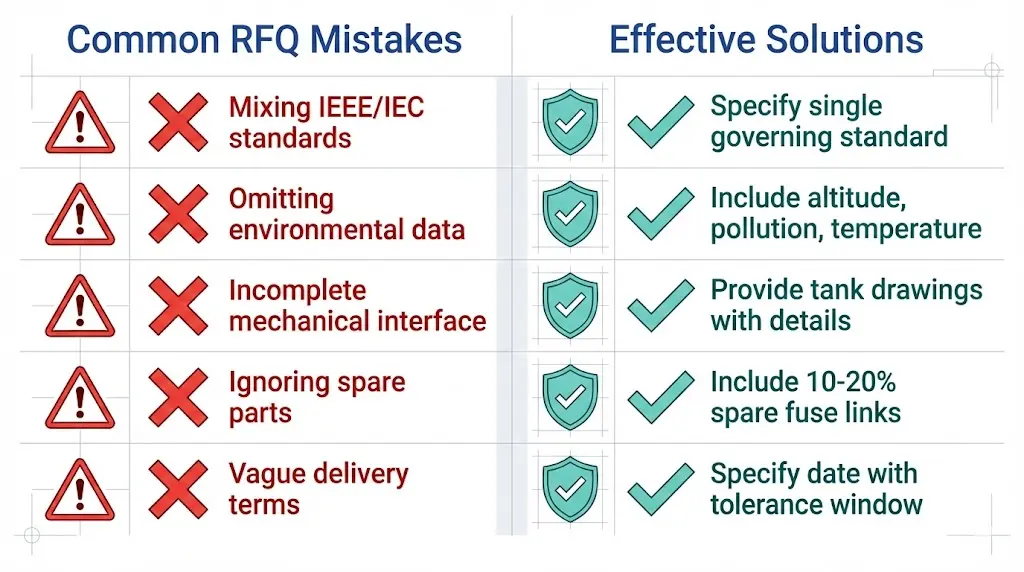

These specification errors appear repeatedly in RFQs we process. Each one triggers clarification cycles that extend procurement timelines.
| Mistake | Consequence | Solution |
|---|---|---|
| Mixing IEEE and IEC standards without clarification | Dimensional and test requirement conflicts | Specify single governing standard OR provide explicit equivalency table |
| Omitting environmental conditions | Insufficient creepage for actual site | Always include altitude, pollution class, temperature range |
| Incomplete mechanical interface data | Bushings arrive but mounting holes don’t align | Request or provide transformer tank drawings with accessory mounting details |
| Ignoring spare parts requirements | Expensive one-off orders for future maintenance | Include spare parts list: 10–20% spare fuse links, gasket sets |
| Vague delivery terms | “ASAP” creates scheduling conflicts | Specify required-on-site date with acceptable tolerance window (±1 week typical) |
Standards Alignment Note: If your project references multiple standards, create a compliance matrix showing which standard governs each parameter. This eliminates interpretation ambiguity that causes manufacturing delays.
Preparing complete RFQ documentation takes time—but incomplete specifications cost more in delays, rework, and compatibility failures. The checklist framework presented here systematically addresses the parameters that matter for bushings, tap changers, fuses, and protective devices.
ZeeyiElec supplies transformer accessories to utility and industrial projects across Asia, the Middle East, and Africa. Our engineering team reviews RFQ documents before quotation, identifying specification gaps that could cause downstream issues.
Ready to streamline your next procurement?
Complete specifications lead to accurate quotes, correct manufacturing, and on-time delivery—without mid-project surprises.
Standard transformer accessories generally ship within 8–16 weeks from order confirmation; custom specifications, large quantities, or specialty ratings for extreme environments may extend to 16–24 weeks depending on manufacturer capacity and material availability.
Select the standard that matches your project’s governing specifications and state it explicitly throughout the RFQ—mixing standards without a clear equivalency table creates dimensional and testing conflicts that delay both quotation and manufacturing.
Match the bushing BIL to the transformer’s nameplate BIL rating; for example, 15 kV class systems typically require 95 kV or 110 kV BIL depending on lightning exposure level and utility-specific insulation coordination requirements.
Request 10–20% spare fuse links, one complete gasket set per accessory type, and spare position indicator contacts for tap changers as a practical baseline; adjust quantities based on site accessibility and maintenance response time constraints.
Air density decreases at higher elevations, reducing dielectric strength and flashover voltage; accessories installed above 1000 meters require increased creepage distances or enhanced insulation—typically applying correction factors of approximately 1% per 100 meters above the 1000m threshold.
The parameter categories remain consistent across voltage classes, but specific values for BIL, creepage distance, current ratings, and interrupting capacity must be recalculated and verified for each application—never copy specifications without confirming suitability for the actual system voltage.
Require type test reports per applicable IEC or IEEE standards, routine test certificates for delivered units, material certificates with traceability, dimensional drawings for fit verification, and installation manuals; for critical accessories, specify factory acceptance test protocols with witness provisions.
